ESPECIFICACIONES técnicas
| Interface | USB 2.0 |
|---|---|
| Dimensions (W x D x H) | 15.7 x 7.4 x 19.2 mm |
| Antenna Type | Omnidirectional |
| WIRELESS FEATURES | |
|---|---|
| Wireless standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency |
5 GHz 2.4 GHz |
| Signal rate |
5 GHz 11ac: up to 433 Mbps (dynamic) 11n: up to 150 Mbps (dynamic) 11a: up to 54 Mbps (dynamic) 2.4 GHz 11n: up to 200 Mbps (dynamic) 11g: up to 54 Mbps (dynamic) 11b: up to 11 Mbps (dynamic) |
| Reception sensitivity |
5 GHz: 11a 6 Mbps: -90 dBm 11a 54 Mbps: -73 dBm 11n HT20 MCS0: -89 dBm 11n HT20 MCS7: -70 dBm 11n HT40 MCS0: -86 dBm 11n HT40 MCS7: -67 dBm 11ac VHT80 MCS0: -82 dBm 11ac VHT80 MCS9: -56 dBm 2.4 GHz: 11b 1 Mbps: -96 dBm 11b 11 Mbps: -88 dBm 11g 6 Mbps: -89 dBm 11g 54 Mbps: -74 dBm 11n HT20 MCS0: -89 dBm 11n HT20 MCS7: -72 dBm 11n HT40 MCS0: -86 dBm 11n HT40 MCS7: -66 dBm |
| Wireless modes | Ad-Hoc/Infrastructure Mode |
| Wireless security | WPA/WPA2/WPA3 encryption standards |
| Modulation technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| package contents |

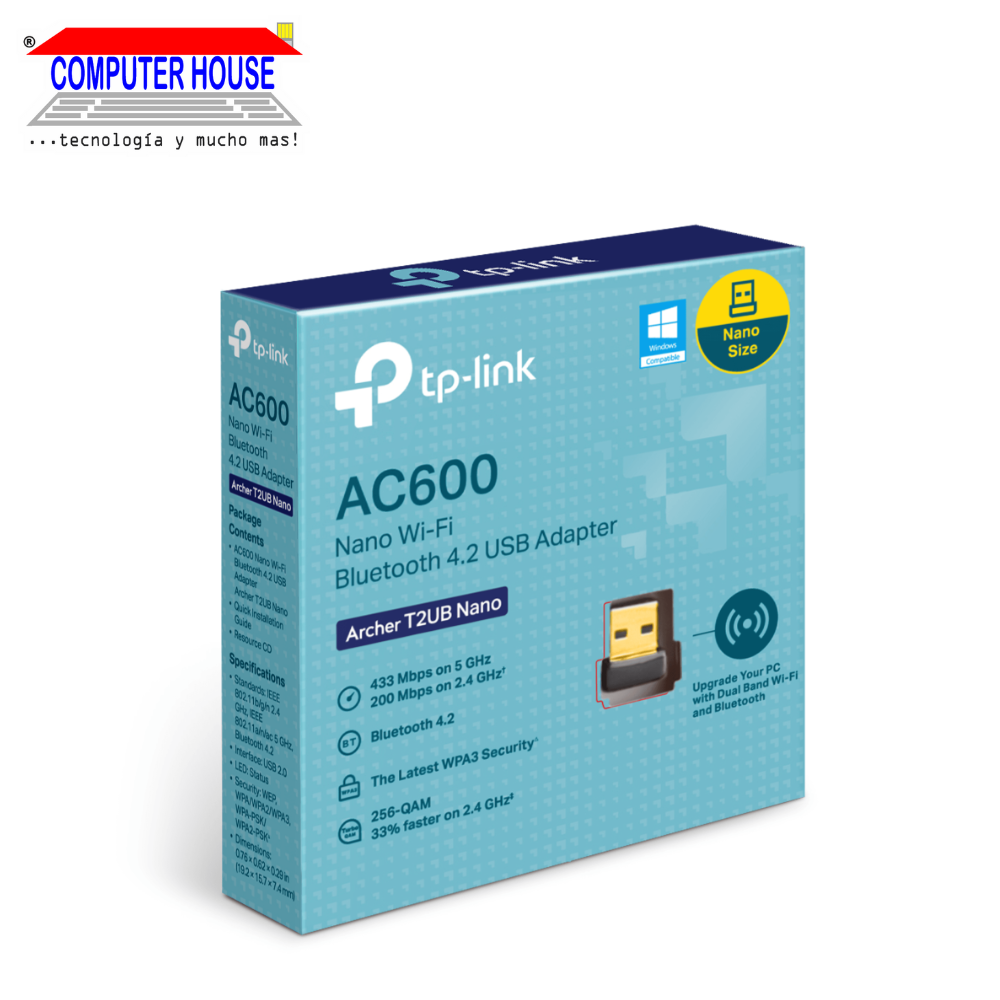

AC600 Nano Wi-Fi Bluetooth 4.2 Archer T2UB Nano USB Adapter Resource CD Quick Installation Guide |
| System Requirements |
Wi-Fi: Windows 11/10/8.1/8/7 Bluetooth: Windows 11/10/8.1/7 |
| Certifications |
AC600 Nano Wi-Fi Bluetooth 4.2 Archer T2UB Nano USB Adapter Resource CD Quick Installation Guide |
| Atmosphere |
Working temperature: 0℃~40℃ (32℉~104℉) Storage temperature: -40℃~70℃ (-40℉~158℉) Operating humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing |
